Type 3891
PC CONTROL BOARD PCI Type 3891

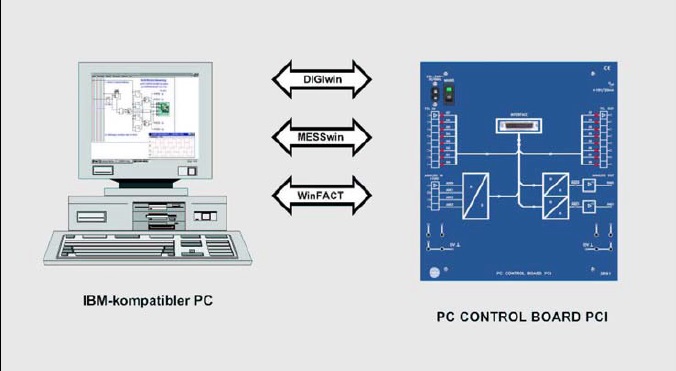

The PC CONTROL BOARD PCI Type 3891 is a universal interface between a PC and hps boards for digital technology, control engineering and measurement technology. It connects the DIGIwin, MESSwin and WinFACT software packages with analog and digital inputs and outputs.
- Universal interface for digital technology, control engineering and measurement technology
- Software packages DIGIwin, MESSwin and WinFACT
- Direct connection of hps boards possible
- 4 analog inputs and 2 analog outputs
- 8 digital inputs and outputs
- PCI connection for IBM-compatible PCs
PC Interface
The PC CONTROL BOARD PCI serves as the interface between a standard PC and hps boards for digital technology, control engineering and measurement technology. The board is connected to the slot card in the computer via a 25-pin Sub-D socket.
The DIGIwin, MESSwin and WinFACT software packages can be used directly with the board and also integrate external devices such as the DIGI BOARD 2 or the SERVO BOARD into the workflow.
Measurement and Control Signals
The board provides eight digital inputs and outputs as well as four analog inputs and two analog outputs. Vref at +10 V is available for external setups.
Wiring is performed via 2 mm sockets; adapter fields make it easy to transition to 4 mm and BNC technology.
- Adapter fields for 4 mm and 2 mm technology
- Suitable for laboratory and training setups
- Mains supply
- 220 V AC ... 240 V AC / 115 V AC (110 V AC), approx. 15 VA, 50 ... 60 Hz
- Interface
- 25-pin Sub-D socket for connection to the slot card in the computer
- TTL IN
- 8 inputs, TTL level 5 V, indication by LED
- ANALOG IN
- 4 inputs, -10 V ... +10 V, multiplex mode, input resistance 1 MOhm
- TTL OUT
- 8 outputs, TTL level 5 V, indication by LED
- ANALOG OUT
- 2 outputs, inverted and non-inverted, -10 V ... +10 V
- Vref
- +10 V, 20 mA
- PCI slot
- 5 V
- Adapter fields
- Transition from 4 mm to 2 mm connections and BNC adapters
- Dimensions
- 266 x 297 x 90 mm
- Weight
- approx. 1.5 kg
- Required accessories
- PC with Windows 95/98/NT 4.0/2000/ME/XP, free PCI slot, PCI I/O card Type 2736
- Offered software
- DIGIwin, MESSwin, WinFACT
- Design, simulate and analyse digital circuits
- Program measurement, control and regulation tasks
- Connect position control with the SERVO BOARD
- Connect speed control with the MOTOR BOARD
- Capture analog and digital signals with the PC
