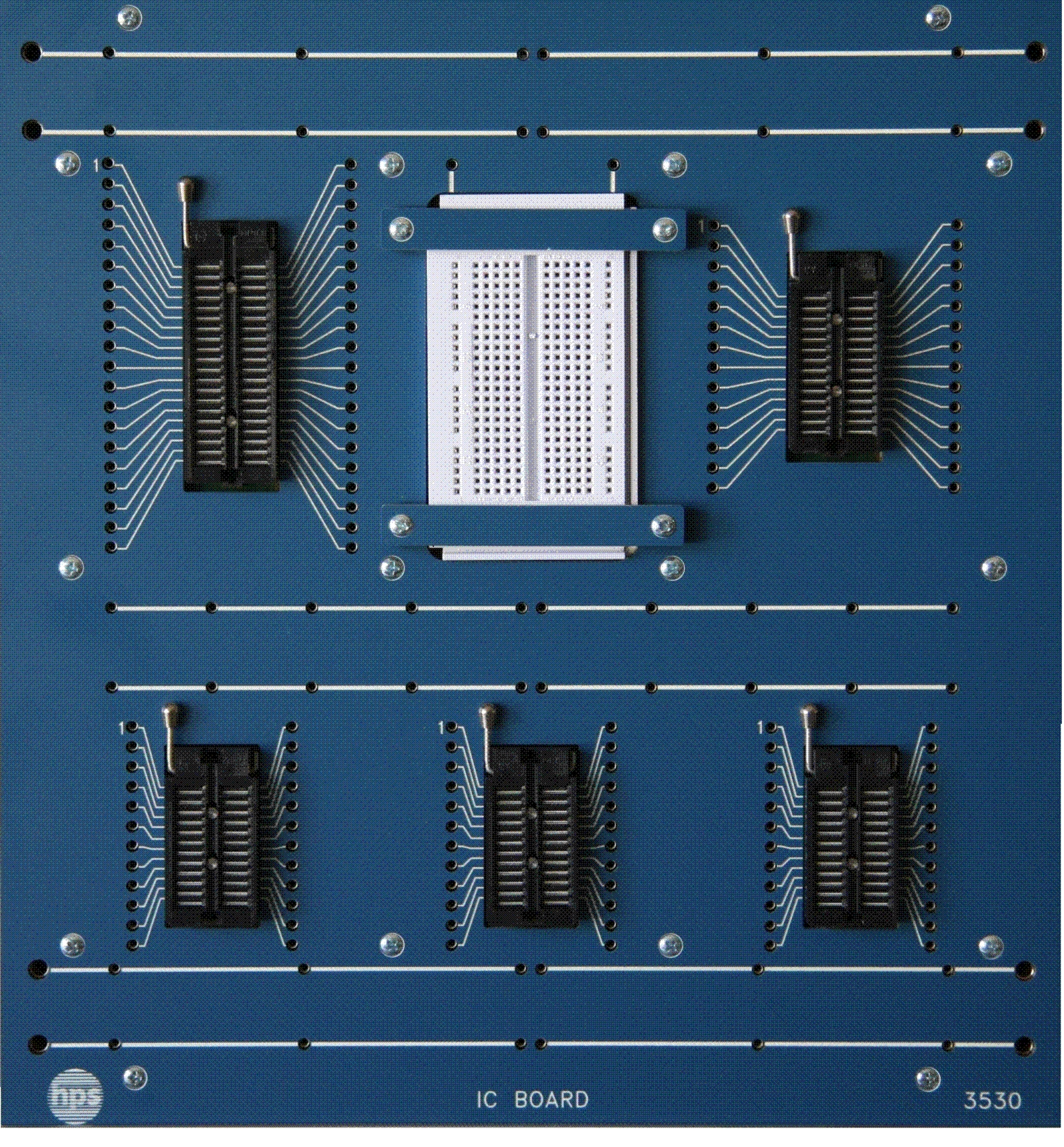

IC BOARD Type 3530
The IC BOARD Type 3530 is a universal training unit for the fast assembly of circuits with standard components. It can be combined with external devices, used without soldering and applied across the full range of electronics.
- Universal training unit for building circuits with standard components
- Fast experiment setup without soldering
- Any operating voltage can be connected, making it very flexible
- Universally combinable with external equipment
- Usable across the whole field of electronics
- Interconnection of several IC BOARD units is possible
Application Areas
The IC BOARD is intended for experiments in basic electronics, analog technology, digital technology, microprocessor technology and control engineering. It can also be used in communications technology.
The connections of the IC sockets are brought out to 2 mm sockets so that circuits can be wired without soldering.
Layout and Expansion
The front panel provides three 24-pin IC sockets, one 28-pin socket, one 40-pin socket and a breadboard with ten plug rows. The upper and lower socket rows can additionally be used via 4 mm sockets.
The design is intended for expansion. Several IC BOARD units can be interconnected and external equipment can be integrated directly.
- 2 mm sockets throughout the connection areas for simple wiring
- Breadboard area for resistors, LEDs and capacitors
- Socket rows
- two rows each at the top, middle and bottom with 2 mm sockets
- IC sockets
- 3 x 24-pin, 1 x 28-pin, 1 x 40-pin
- Breadboard
- 10 plug rows with 23 pins each
- Usable wire diameters
- 0.4 ... 1.0 mm
- Socket adapter
- 4 mm sockets at the outer edges of the upper and lower socket rows
- Front panel
- 5 mm laminated press material, matte blue, white engraving
- Rear side
- grey plastic housing for protection and an inclined working position
- Dimensions
- 266 x 297 x 90 mm
- Weight
- approx. 1.25 kg
- Recommended accessories
- Accessory set Type 3530.1
- Basic electronics
- Analog technology
- Digital technology
- Microprocessor technology
- Control engineering
- Communications technology
