Type 3100
Fault Simulators Series 3100
The Series 3100 fault simulators are training units for systematic troubleshooting in installation and control circuits. Up to 20 faults can be activated in realistic scenarios so that signal tracing, testing and diagnosis can be practised under practical conditions.
- Up to 20 faults selectable with toggle switches
- Lockable cover above the toggle switches for exam use
- Standard circuit layout with exposed 4 mm test points
- Detailed device descriptions including fault lists
- Grey plastic rear cover for protection against contact
- Usable as a table-top unit or in hps table and demonstration frames
Series and Application
Series 3100 is designed for troubleshooting and signal tracing in applied installation circuits. The individual simulators reproduce typical fault patterns in a practical way and make diagnostic procedures easier to train.
Each simulator includes a detailed device description with a short overview, a fault list and troubleshooting notes. This makes the series especially suitable for teaching, laboratory use and examinations.
Setup and Operation

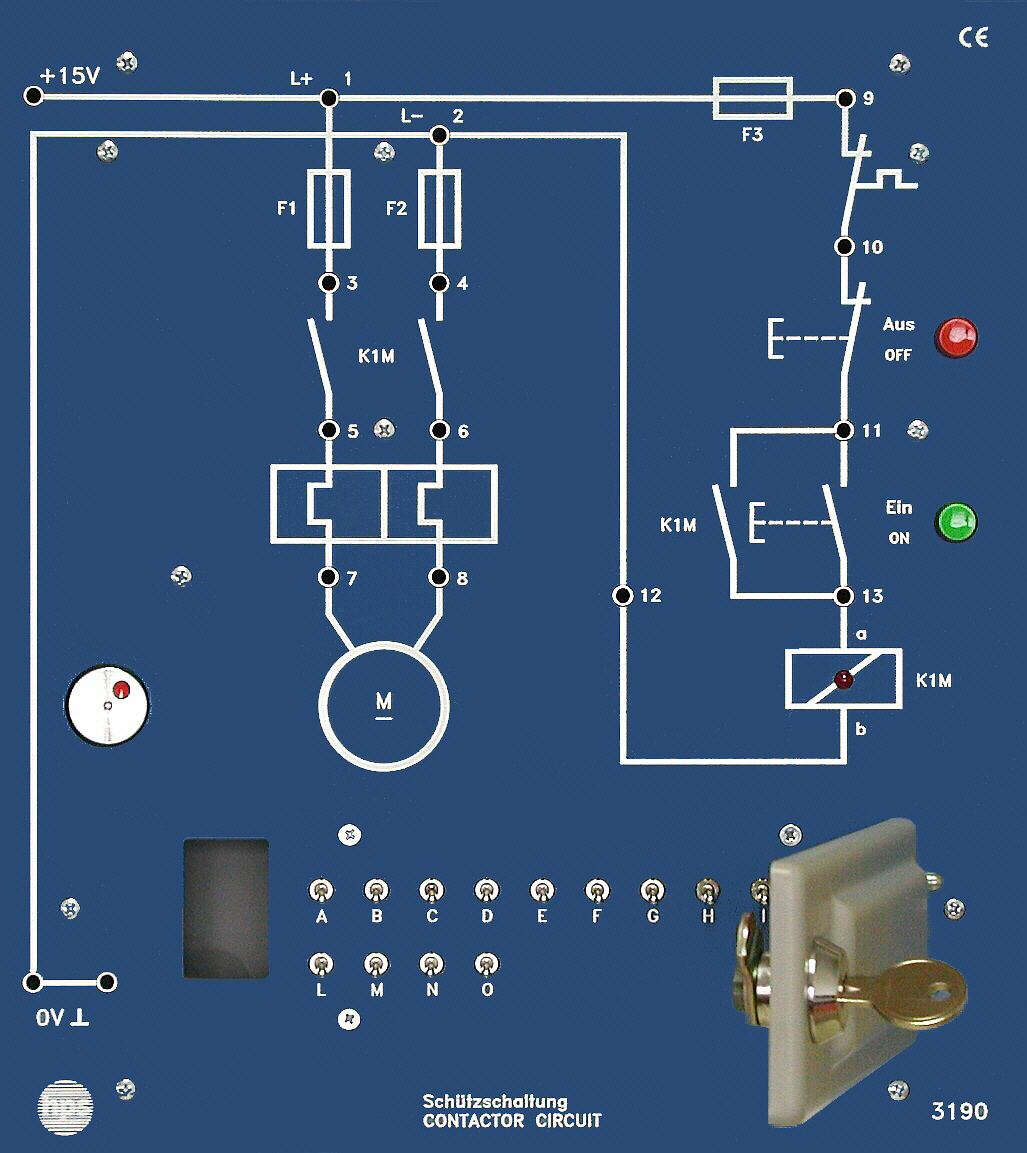

The circuit layout is shown in standard form on the front panel. The 4 mm sockets allow clean wiring and straightforward connection to measuring instruments.
The simulators can be placed on a table or mounted in hps table and demonstration frames. The rear side is covered by a grey plastic housing, keeping the unit protected during operation.
- Short preparation times for training and examinations
- Series concept with several fault simulator variants
- Series
- Fault Simulators Series 3100
- Operating voltage Type 3180
- 230 V AC / 50 Hz via isolation transformer
- Maximum load Type 3180
- 660 W
- Selectable faults Type 3180
- 20
- Dimensions Type 3180
- 266 x 297 x 70 mm
- Operating voltage Type 3195
- 230 V AC via isolation transformer
- Selectable faults Type 3195
- 12
- Dimensions Type 3195
- 532 x 297 x 160 mm
- Weight Type 3195
- approx. 3.3 kg
- Operating voltage Type 3196
- 230 V AC via isolation transformer
- Selectable faults Type 3196
- 12
- Dimensions Type 3196
- 532 x 297 x 115 mm
- Weight Type 3196
- approx. 2.6 kg
- Operating voltage Type 3197
- 230 V AC via isolation transformer
- Selectable faults Type 3197
- 15
- Dimensions Type 3197
- 532 x 297 x 112 mm
- Weight Type 3197
- approx. 2.6 kg
- Recommended accessories
- 9102.3, 8626, 2214
- Troubleshooting applied installation circuits
- Signal tracing with up to 20 simulated faults
- Testing phase-angle control, fluorescent lamp circuits and changeover circuits
- Testing impulse switch circuits with realistic fault patterns
