Type 2105

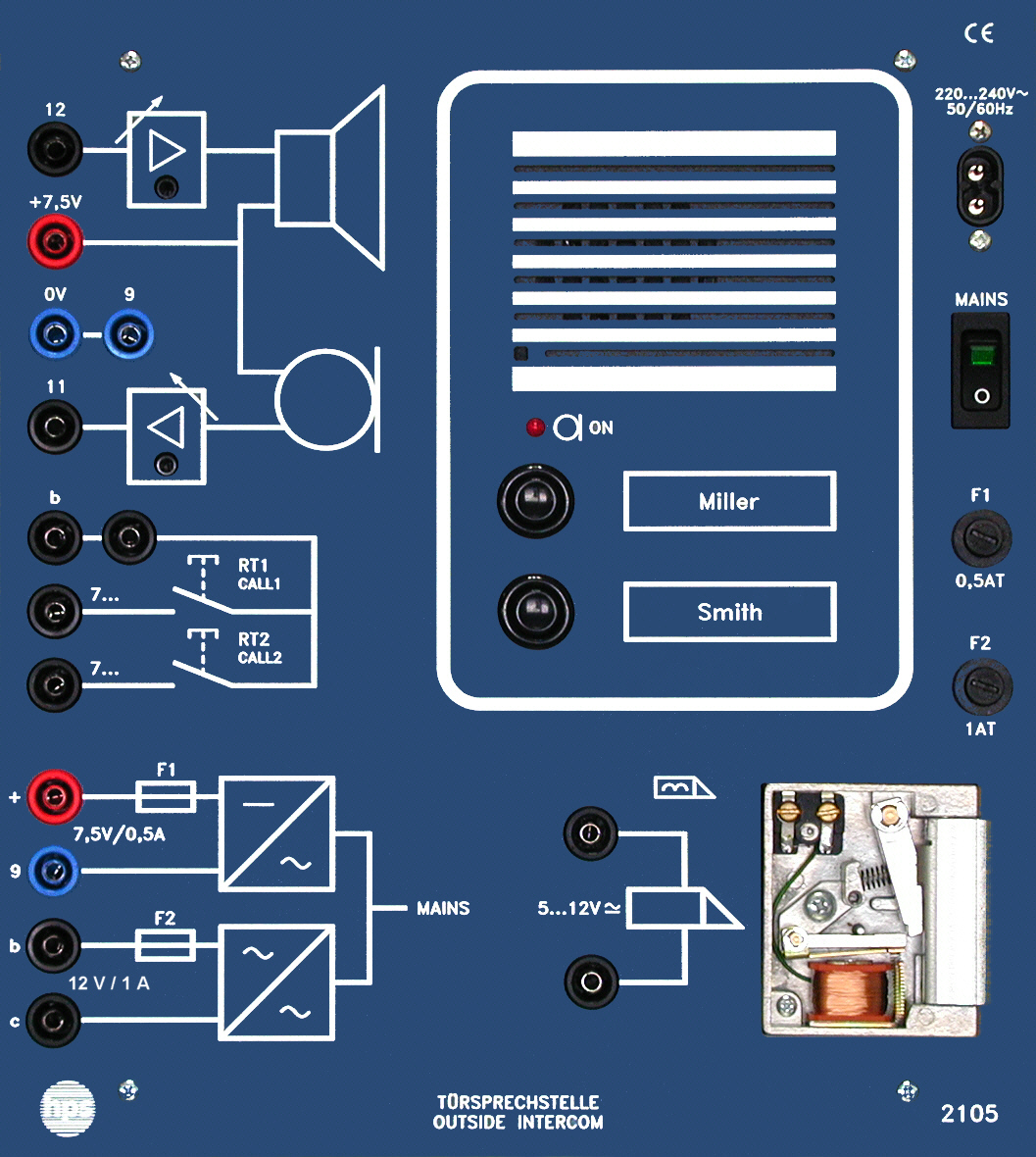

OUTSIDE INTERCOM Type 2105
The OUTSIDE INTERCOM Type 2105 is the outside module of the house intercom system. With built-in microphone, loudspeaker, adjustable amplifier and door opener, it models the typical functions of an intercom installation for use with one or two inside intercoms. The board is intended for teaching and demonstration.
- Built-in microphone and loudspeaker
- Adjustable amplifier
- Transparent door opener cover
- Two bell buttons
- 7.5 V DC / 0.5 A and 12 V AC / 1 A supply
- 220 ... 240 V AC mains connection
Outside intercom function
Type 2105 represents the outside module of a house intercom installation. With microphone, loudspeaker, adjustable amplifier and door opener, typical intercom functions can be assembled and studied in practice.
The system is intended for operation with one or two inside intercoms.
Mechanical design
The front panel is made of 5 mm blue laminated fibreboard with white symbols. The rear side is protected by a grey plastic housing, and all connections are implemented as 4 mm safety sockets.
The board is designed for training and demonstration use.
- 4 mm safety sockets for all inputs and outputs
- 5 mm blue front panel with white symbols
- Grey plastic rear housing
- Suitable for one or two inside intercoms
- Mains connection
- 220 ... 240 V AC, 50 ... 60 Hz; approx. 20 VA
- DC supply
- 7.5 V DC / 0.5 A
- AC supply
- 12 V AC / 1 A
- Dimensions
- 266 x 297 x 100 mm (W x H x D)
- Weight
- approx. 2.1 kg
- Front panel
- 5 mm blue laminated fibreboard with white symbols
- Rear side
- Grey plastic housing
- Connection technology
- 4 mm safety sockets for all inputs and outputs
